Aligning two coronal sections of adult mouse brain from MERFISH

In this notebook, we align two single cell resolution spatial transcriptomics datasets of coronal sections of the adult mouse brain from matched locations with respect to bregma assayed by MERFISH.

We will use STalign to achieve this alignment. We will first load the relevant code libraries.

For two sets of cells, STalign.align_cells is an alternative that runs the main steps of this tutorial in one call; see the last section.

## import dependencies
import numpy as np
import matplotlib.pyplot as plt
import pandas as pd
import torch
import plotly
import requests

# make plots bigger
plt.rcParams["figure.figsize"] = (12,10)

# OPTION A: import STalign after pip or pipenv install
from STalign import STalign

## OPTION B: skip cell if installed STalign with pip or pipenv
import sys
sys.path.append("../../STalign")

## import STalign from upper directory
import STalign

We have already downloaded single cell spatial transcriptomics datasets and placed the files in a folder called merfish_data.

We can read in the cell information for the first dataset using pandas as pd.

# Single cell data 1
# read in data
fname = '../merfish_data/datasets_mouse_brain_map_BrainReceptorShowcase_Slice2_Replicate3_cell_metadata_S2R3.csv.gz'
df1 = pd.read_csv(fname)
print(df1.head())

                                Unnamed: 0  fov       volume    center_x  \
0  158338042824236264719696604356349910479   33   532.778772  617.916619
1  260594727341160372355976405428092853003   33  1004.430016  596.808018
2  307643940700812339199503248604719950662   33  1267.183208  578.880018
3   30863303465976316429997331474071348973   33  1403.401822  572.616017
4  313162718584097621688679244357302162401   33   507.949497  608.364018

      center_y       min_x       max_x        min_y        max_y
0  2666.520010  614.725219  621.108019  2657.545209  2675.494810
1  2763.450012  589.669218  603.946818  2757.013212  2769.886812
2  2748.978012  570.877217  586.882818  2740.489211  2757.466812
3  2766.690012  564.937217  580.294818  2756.581212  2776.798812
4  2687.418010  603.061218  613.666818  2682.493210  2692.342810

For alignment with STalign, we only need the cell centroid information so we can pull out this information. We can further visualize the cell centroids to get a sense of the variation in cell density that we will be relying on for our alignment by plotting using matplotlib.pyplot as plt.

# get cell centroid coordinates
xI = np.array(df1['center_x'])
yI = np.array(df1['center_y'])

# plot
fig,ax = plt.subplots()
ax.scatter(xI,yI,s=1,alpha=0.2, label='source')
ax.legend(markerscale = 10)

<matplotlib.legend.Legend at 0x11334a120>

Now, we can repeat this to get cell information from the second dataset.

# Single cell data 2
# read in data
fname = '../merfish_data/datasets_mouse_brain_map_BrainReceptorShowcase_Slice2_Replicate2_cell_metadata_S2R2.csv.gz'

df2 = pd.read_csv(fname)

# get cell centroids
xJ = np.array(df2['center_x'])
yJ = np.array(df2['center_y'])

# plot
fig,ax = plt.subplots()
ax.scatter(xJ,yJ,s=1,alpha=0.2,c='#ff7f0e', label='target')
ax.legend(markerscale = 10)

<matplotlib.legend.Legend at 0x133a0f680>

Note that plotting the cell centroid positions from both datasets shows that non-linear local alignment is needed.

# plot
fig,ax = plt.subplots()
ax.scatter(xI,yI,s=1,alpha=0.2, label='source')
ax.scatter(xJ,yJ,s=1,alpha=0.1, label= 'target')
ax.legend(markerscale = 10)

<matplotlib.legend.Legend at 0x1360d0380>

STalign relies on an interative gradient descent to align these two images. This performs quicker and better if the source and target are initially at a similar angle.

Evaluate the similarity of the rotation angle by viewing a side by side comparison. Change the value of theta_deg, until the rotation angle is similar. Note: the rotation here is defined in degrees and is in the clockwise direction.

The angle chosen will be used to construct a 2x2 rotation matrix L and a 2 element translation vector T.

theta_deg = 45
theta0 = (np.pi/180)*-theta_deg

#rotation matrix
#rotates about the origin
L = np.array([[np.cos(theta0),-np.sin(theta0)],
              [np.sin(theta0),np.cos(theta0)]])

source_L = np.matmul(L , np.array([xI, yI]))
xI_L = source_L[0]
yI_L = source_L[1]

#translation matrix
#effectively makes the rotation about the centroid of I (i.e the means of xI and yI])
#and also moves the centroid of I to the centroid of J
T = np.array([ np.mean(xI)- np.cos(theta0)*np.mean(xI) +np.sin(theta0)*np.mean(yI) - (np.mean(xI)-np.mean(xJ)),
              np.mean(yI)- np.sin(theta0)*np.mean(xI) -np.cos(theta0)*np.mean(yI) - (np.mean(yI)-np.mean(yJ))])

xI_L_T = xI_L + T[0]
yI_L_T = yI_L + T[1]


fig,ax = plt.subplots()
ax.scatter(xI_L_T,yI_L_T,s=1,alpha=0.1, label='source with initial affine transformation')
ax.scatter(xJ,yJ,s=1,alpha=0.1, label = 'target')
ax.legend(markerscale = 10)

<matplotlib.legend.Legend at 0x1360e8380>

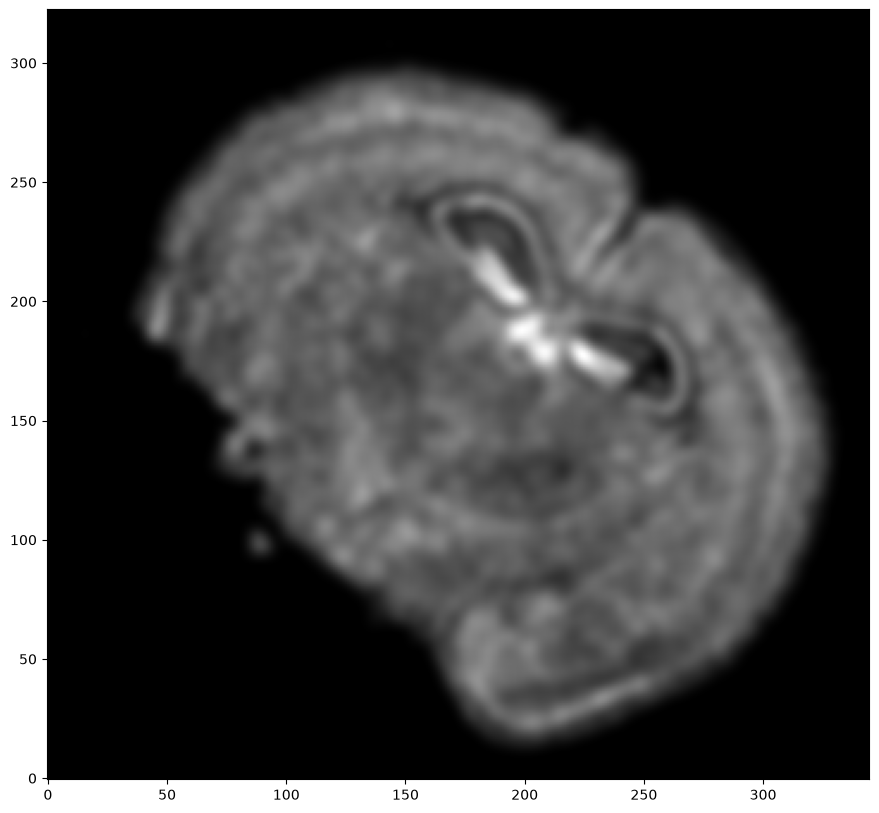

Now, we will first use STalign to rasterize the single cell centroid positions into an image. Assuming the single-cell centroid coordinates are in microns, we will perform this rasterization at a 30 micron resolution. We can visualize the resulting rasterized image.

Note that points are plotting with the origin at bottom left while images are typically plotted with origin at top left so we’ve used invert_yaxis() to invert the yaxis for visualization consistency.

# rasterize at 30um resolution (assuming positions are in um units) and plot
XI,YI,I,fig = STalign.rasterize(xI_L_T,yI_L_T,dx=30,blur=1.5)

# plot
ax = fig.axes[0]
ax.invert_yaxis()

Repeat rasterization for target dataset.

# rasterize and plot
XJ,YJ,J,fig = STalign.rasterize(xJ,yJ,dx=30, blur=1.5)
ax = fig.axes[0]
ax.invert_yaxis()

We can also plot the rasterized images next to each other.

# get extent of images
extentI = STalign.extent_from_x((YI,XI))
extentJ = STalign.extent_from_x((YJ,XJ))

# plot rasterized images
fig,ax = plt.subplots(1,2)
ax[0].imshow(I[0], extent=extentI)
ax[1].imshow(J[0], extent=extentJ)
ax[0].invert_yaxis()
ax[1].invert_yaxis()

Now we will perform our alignment. There are many parameters that can be tuned for performing this alignment. If we don’t specify parameters, defaults will be used.

%%time
# run LDDMM
# specify device (default device for STalign.LDDMM is cpu)
if torch.cuda.is_available():
    device = 'cuda:0'
else:
    device = 'cpu'

# keep all other parameters default
params = {
            'niter': 10000,
            'device':device,
            'epV': 50
          }

out = STalign.LDDMM([YI,XI],I,[YJ,XJ],J,**params)

CPU times: user 2min 4s, sys: 3.23 s, total: 2min 7s
Wall time: 10.3 s

# get necessary output variables
A = out['A']
v = out['v']
xv = out['xv']

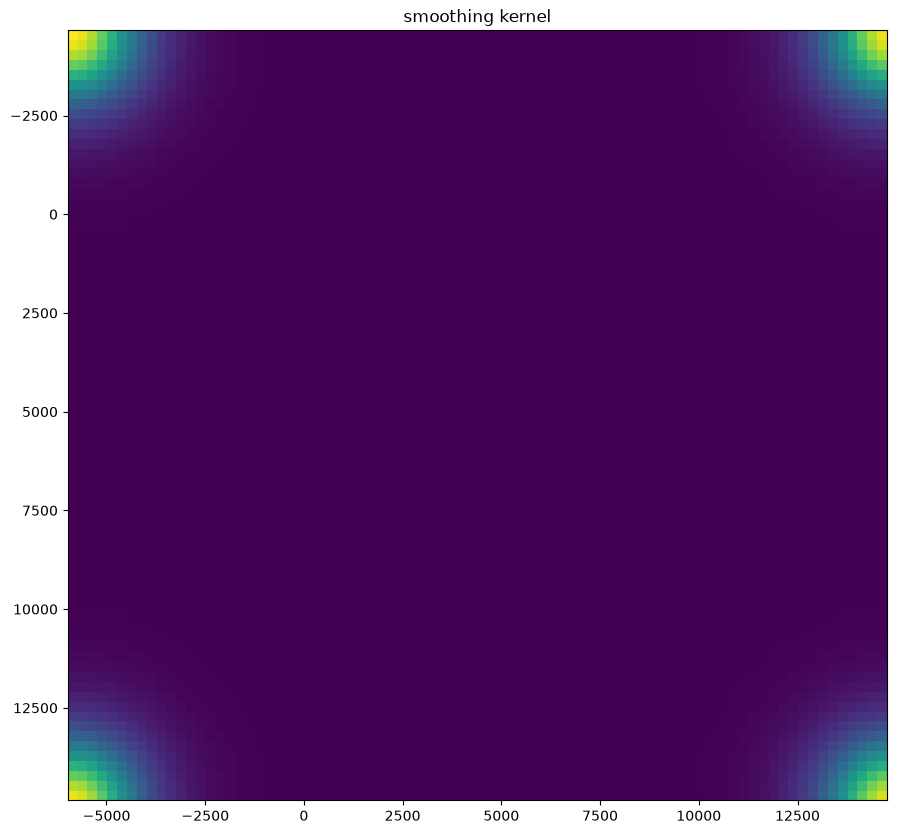

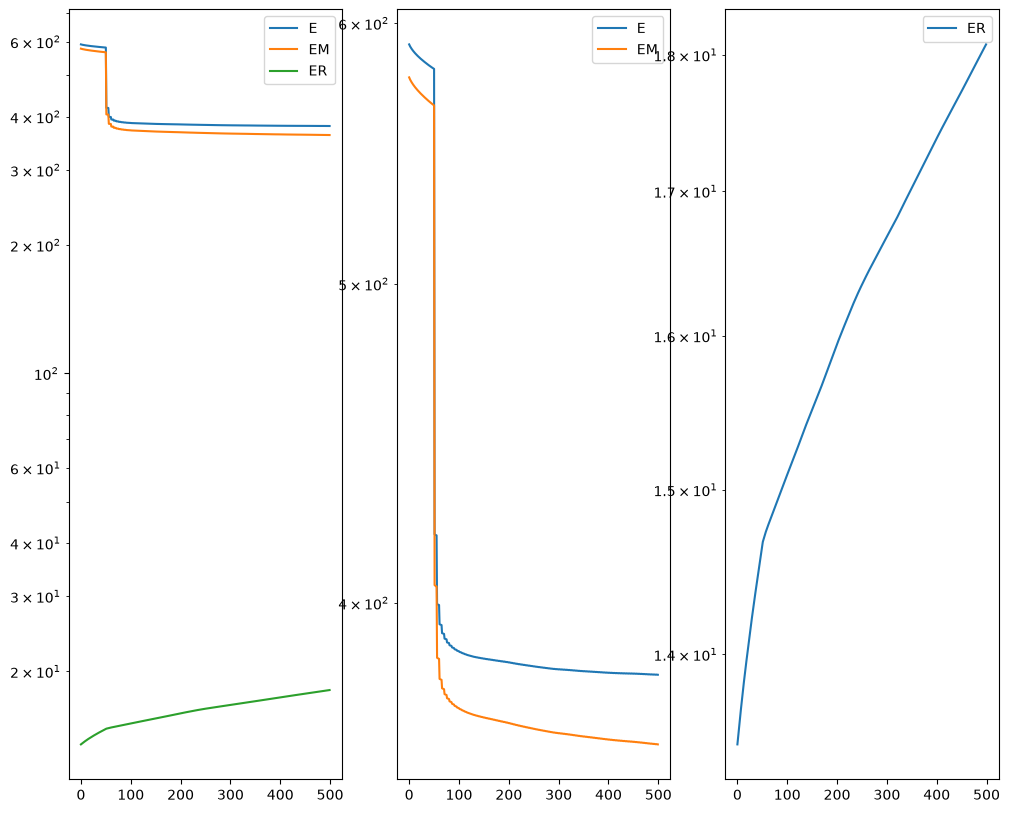

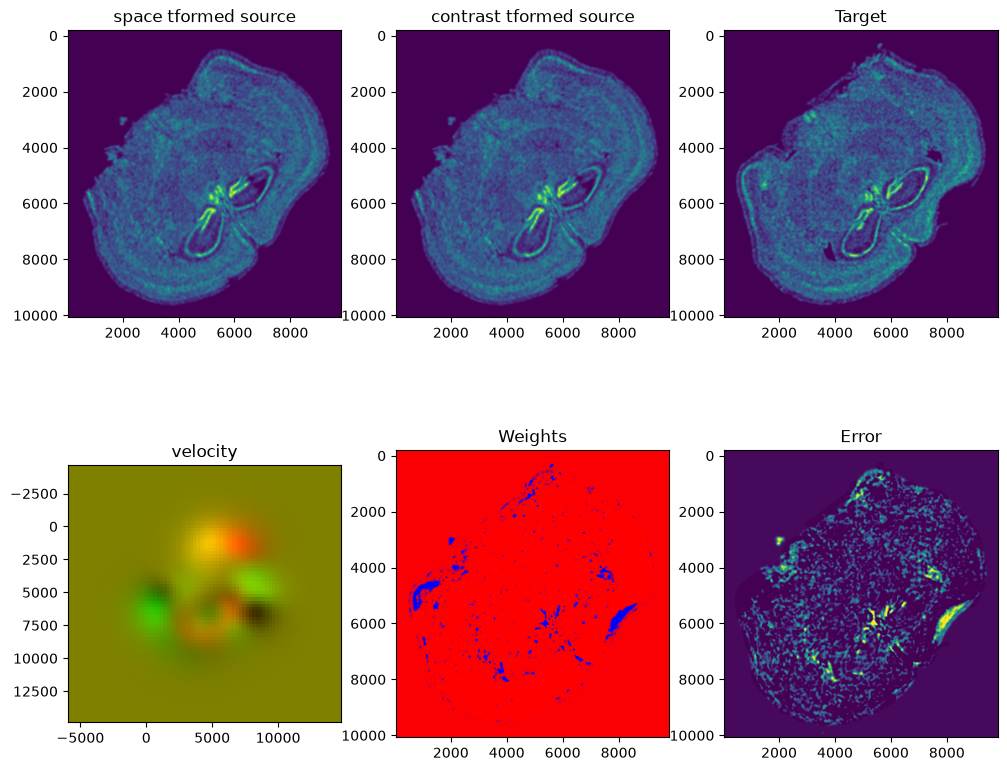

Plots generated throughout the alignment can be used to give you a sense of whether the parameter choices are appropriate and whether your alignment is converging on a solution.

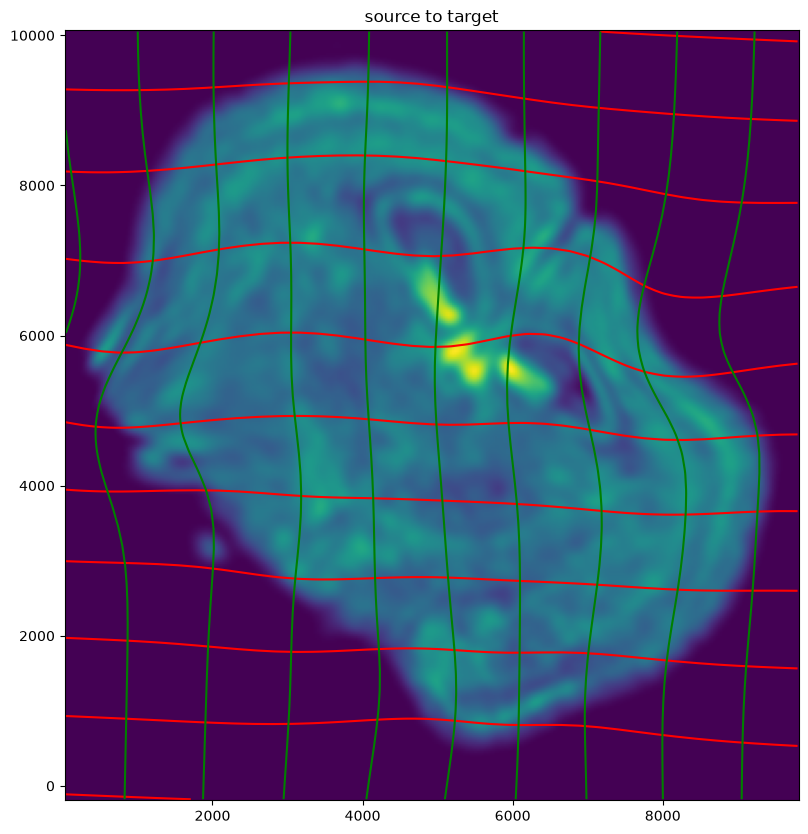

We can also evaluate the resulting alignment by applying the transformation to visualize how our source and target images were deformed to achieve the alignment.

# set device for building tensors
if torch.cuda.is_available():
    torch.set_default_device('cuda:0')
else:
    torch.set_default_device('cpu')

# apply transform
phii = STalign.build_transform(xv,v,A,XJ=[YJ,XJ],direction='b')
phiI = STalign.transform_image_source_to_target(xv,v,A,[YI,XI],I,[YJ,XJ])

#switch tensor from cuda to cpu for plotting with numpy
if phii.is_cuda:
    phii = phii.cpu()
if phiI.is_cuda:
    phiI = phiI.cpu()

# plot with grids
fig,ax = plt.subplots()
levels = np.arange(-100000,100000,1000)
ax.contour(XJ,YJ,phii[...,0],colors='r',linestyles='-',levels=levels)
ax.contour(XJ,YJ,phii[...,1],colors='g',linestyles='-',levels=levels)
ax.set_aspect('equal')
ax.set_title('source to target')
ax.imshow(phiI.permute(1,2,0)/torch.max(phiI),extent=extentJ)
ax.invert_yaxis()

Note that because of our use of LDDMM, the resulting transformation is invertible.

# transform is invertible
phi = STalign.build_transform(xv,v,A,XJ=[YI,XI],direction='f')
phiiJ = STalign.transform_image_target_to_source(xv,v,A,[YJ,XJ],J,[YI,XI])

#switch tensor from cuda to cpu for plotting with numpy
if phi.is_cuda:
    phi = phi.cpu()
if phiiJ.is_cuda:
    phiiJ = phiiJ.cpu()

# plot with grids
fig,ax = plt.subplots()
levels = np.arange(-100000,100000,1000)
ax.contour(XI,YI,phi[...,0],colors='r',linestyles='-',levels=levels)
ax.contour(XI,YI,phi[...,1],colors='g',linestyles='-',levels=levels)
ax.set_aspect('equal')
ax.set_title('target to source')
ax.imshow(phiiJ.permute(1,2,0)/torch.max(phiiJ),extent=extentI)
ax.invert_yaxis()

Finally, we can apply our STalign transform to the original sets of single cell centroid positions (with initial affine transformation) to achieve their new aligned positions.

# apply transform to original points
tpointsI= STalign.transform_points_source_to_target(xv,v,A, np.stack([yI_L_T, xI_L_T], 1))

#switch tensor from cuda to cpu for plotting with numpy
if tpointsI.is_cuda:
    tpointsI = tpointsI.cpu()

#switch from row column coordinates (y,x) to (x,y)
xI_LDDMM = tpointsI[:,1]
yI_LDDMM = tpointsI[:,0]

And we can visualize the results.

# plot results
fig,ax = plt.subplots()
ax.scatter(xI,yI,s=1,alpha=0.1, label='source')
ax.scatter(xI_LDDMM,yI_LDDMM,s=1,alpha=0.1, label = 'source aligned')
ax.scatter(xJ,yJ,s=1,alpha=0.1, label='target')
ax.legend(markerscale = 10)

<matplotlib.legend.Legend at 0x164d3fc20>

fig,ax = plt.subplots(1,2)
ax[0].scatter(xI_L_T,yI_L_T,s=1,alpha=0.1, label='source with initial affine transformation')
ax[0].scatter(xJ,yJ,s=1,alpha=0.1, label='target')
ax[1].scatter(xI_LDDMM,yI_LDDMM,s=1,alpha=0.1, label = 'source STaligned')
ax[1].scatter(xJ,yJ,s=1,alpha=0.1, label='target')
ax[0].legend(markerscale = 10, loc = 'lower left')
ax[1].legend(markerscale = 10, loc = 'lower left')

<matplotlib.legend.Legend at 0x147bac3e0>

And save the new aligned positions by appending to our original data

df3 = pd.DataFrame(

    {

        "aligned_x": xI_LDDMM,

        "aligned_y": yI_LDDMM,

    },


)

results = pd.concat([df1, df3], axis=1)
results.head()

	Unnamed: 0	fov	volume	center_x	center_y	min_x	max_x	min_y	max_y	aligned_x	aligned_y
0	158338042824236264719696604356349910479	33	532.778772	617.916619	2666.520010	614.725219	621.108019	2657.545209	2675.494810	1113.625649	7737.126777
1	260594727341160372355976405428092853003	33	1004.430016	596.808018	2763.450012	589.669218	603.946818	2757.013212	2769.886812	1150.717989	7840.341117
2	307643940700812339199503248604719950662	33	1267.183208	578.880018	2748.978012	570.877217	586.882818	2740.489211	2757.466812	1129.321468	7841.499978
3	30863303465976316429997331474071348973	33	1403.401822	572.616017	2766.690012	564.937217	580.294818	2756.581212	2776.798812	1134.328026	7862.237238
4	313162718584097621688679244357302162401	33	507.949497	608.364018	2687.418010	603.061218	613.666818	2682.493210	2692.342810	1117.829851	7763.322430

We will finally create a compressed .csv.gz file named mouse_brain_map_BrainReceptorShowcase_Slice2_Replicate3_STalign_to_Slice2_Replicate2.csv.gz

results.to_csv('../merfish_data/mouse_brain_map_BrainReceptorShowcase_Slice2_Replicate3_STalign_to_Slice2_Replicate2.csv.gz',
               compression='gzip')

Alternative: align_cells

STalign.align_cells runs the steps above in one call. It rasterizes both sets of cells at 15 µm with a Gaussian kernel of 30 µm standard deviation, and runs LDDMM coarse to fine (500 iterations on 60 µm pixels, then 500 on 30 µm), with the step sizes and the regularization chosen from the images. It chooses these settings for you: the walkthrough above shows what each of them does, and align_cells accepts them as arguments. In our tests on simulated deformations of real cell sets, its error was less than half that of LDDMM on a single raster. It returns the same output as LDDMM, so the transform functions work on it as above.

By default, align_cells uses a mixture model (mixture='em') that gives a low weight to parts of the target that look like background where the source has tissue, which helps when the target section lacks tissue that the source has. Both sections here are complete. For complete sections, also try mixture=None, which turns the mixture model off: in our tests the mixture model made the alignment of some complete sections with uneven cell density, and of some serial sections, worse.

%%time
# align the source cells (with the initial rotation) to the target cells
out_cells = STalign.align_cells(xI_L_T, yI_L_T, xJ, yJ, device=device)

CPU times: user 11.9 s, sys: 3.21 s, total: 15.2 s
Wall time: 3.15 s

# apply transform to the source cells
tpointsI_cells = STalign.transform_points_source_to_target(out_cells['xv'],out_cells['v'],out_cells['A'], np.stack([yI_L_T, xI_L_T], 1))

#switch tensor from cuda to cpu for plotting with numpy
if tpointsI_cells.is_cuda:
    tpointsI_cells = tpointsI_cells.cpu()

#switch from row column coordinates (y,x) to (x,y)
xI_cells = tpointsI_cells[:,1]
yI_cells = tpointsI_cells[:,0]

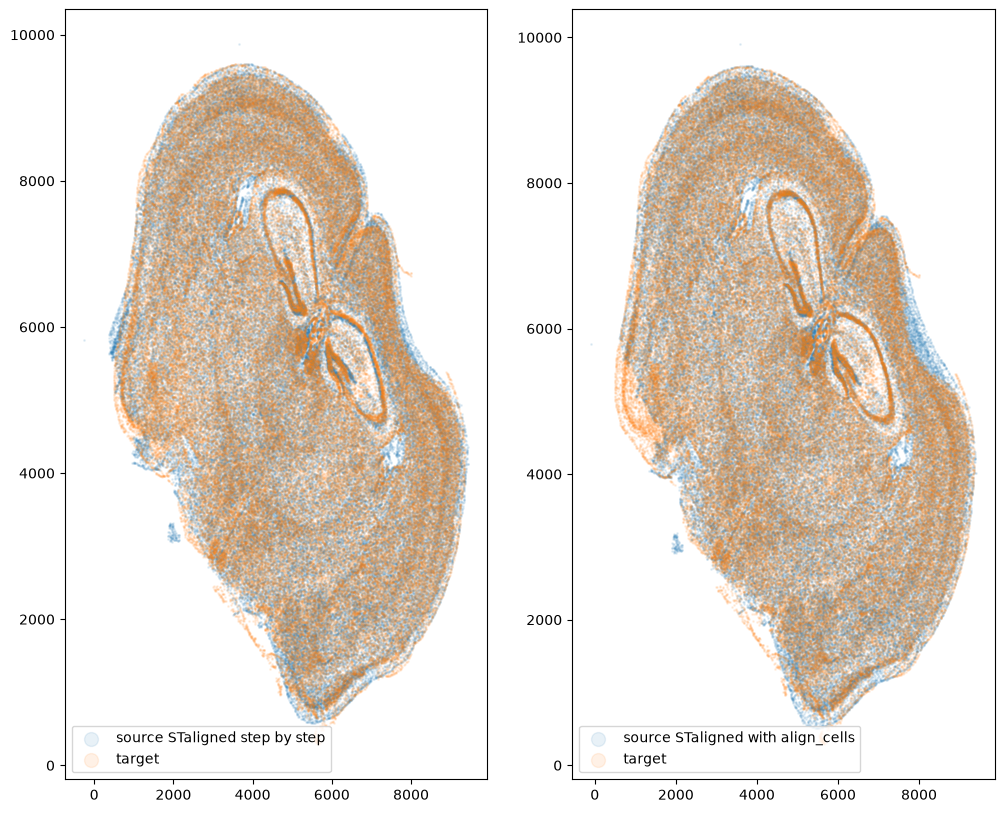

We can compare the result with that of the step by step alignment above.

fig,ax = plt.subplots(1,2)
ax[0].scatter(xI_LDDMM,yI_LDDMM,s=1,alpha=0.1, label = 'source STaligned step by step')
ax[0].scatter(xJ,yJ,s=1,alpha=0.1, label='target')
ax[1].scatter(xI_cells,yI_cells,s=1,alpha=0.1, label = 'source STaligned with align_cells')
ax[1].scatter(xJ,yJ,s=1,alpha=0.1, label='target')
ax[0].legend(markerscale = 10, loc = 'lower left')
ax[1].legend(markerscale = 10, loc = 'lower left')

<matplotlib.legend.Legend at 0x164d28a10>

# distance between the two aligned positions of each cell
d = np.sqrt(np.sum((tpointsI_cells.numpy() - tpointsI.numpy())**2, axis=1))
print('distance between the two results: mean {:.1f}, median {:.1f}, 95th percentile {:.1f}'.format(
    np.mean(d), np.median(d), np.percentile(d, 95)))

distance between the two results: mean 73.2, median 47.5, 95th percentile 209.2

The two alignments are similar: half of the cells are placed within about 50 µm of each other, less than two pixels of the 30 µm images above, and align_cells took a fraction of the time.
