Aligning partially matched coronal sections of adult mouse brain from Xenium and STARmap PLUS
In this notebook, we align two single cell resolution spatial transcriptomics datasets of full and hemi coronal sections of the adult mouse brain from approximately the same locations assayed by Xenium and STARmap PLUS. For more details about how these datasets were generated, please consult the Xenium mouse brain data release and the STARmap PLUS preprint.
We will use STalign to achieve this alignment. We will first load the relevant code libraries.
For two sets of cells, STalign.align_cells is an alternative that runs the main steps of this tutorial in one call; see the last section.
[1]:
# import dependencies
import numpy as np
import matplotlib.pyplot as plt
import pandas as pd
import torch
# make plots bigger
plt.rcParams["figure.figsize"] = (12,10)
[ ]:
# OPTION A: import STalign after pip or pipenv install
from STalign import STalign
[2]:
## OPTION B: skip cell if installed STalign with pip or pipenv
import sys
sys.path.append("../../STalign")
## import STalign from upper directory
import STalign
We have already downloaded single cell spatial transcriptomics datasets and placed the files in a folder called xenium_data and starmap_data.
We can read in the cell information for the first dataset using pandas as pd.
[3]:
# Single cell data 1
# read in data
fname = '../xenium_data/Xenium_V1_FF_Mouse_Brain_MultiSection_1_cells.csv.gz'
df1 = pd.read_csv(fname)
print(df1.head())
cell_id x_centroid y_centroid transcript_counts control_probe_counts \
0 1 1557.532239 2528.022437 327 0
1 2 1560.669312 2543.632678 354 0
2 3 1570.462885 2530.810461 422 0
3 4 1573.927734 2546.454529 250 0
4 5 1581.344379 2557.024951 550 1
control_codeword_counts total_counts cell_area nucleus_area
0 0 327 240.953750 63.038125
1 0 354 211.692500 65.476562
2 0 422 186.946875 69.540625
3 0 250 239.237812 61.728594
4 0 552 438.692969 92.209063
For alignment with STalign, we only need the cell centroid information. So we can pull out this information. We can further visualize the cell centroids to get a sense of the variation in cell density that we will be relying on for our alignment by plotting using matplotlib.pyplot as plt.
[4]:
# get cell centroid coordinates
xI = np.array(df1['x_centroid'])
yI = np.array(df1['y_centroid'])
# plot
fig,ax = plt.subplots()
ax.scatter(xI,yI,s=1,alpha=0.2)
[4]:
<matplotlib.collections.PathCollection at 0x13fb141d0>
We will first use STalign to rasterize the single cell centroid positions into an image. Assuming the single-cell centroid coordinates are in microns, we will perform this rasterization at a 30 micron resolution. We can visualize the resulting rasterized image.
Note that points are plotting with the origin at bottom left while images are typically plotted with origin at top left so we’ve used invert_yaxis() to invert the yaxis for visualization consistency.
[5]:
# rasterize at 30um resolution (assuming positions are in um units) and plot
XI,YI,I,fig = STalign.rasterize(xI,yI)
# plot
ax = fig.axes[0]
ax.invert_yaxis()
Now, we can repeat this for the cell information from the second dataset.
[6]:
# Single cell data 2
# read in data
fname = '../starmap_data/well11_spatial.csv.gz'
df2 = pd.read_csv(fname, skiprows=[1]) # first row is data type
print(df2.head())
NAME X Y Z Tissue_Symbol \
0 well11_0 10834.272727 1488.454545 8.242424 L1_HPFmo
1 well11_1 12139.406780 864.788136 16.389831 Meninges
2 well11_2 11848.132075 1225.679245 21.528302 Meninges
3 well11_3 11090.980392 1342.539216 8.637255 L1_HPFmo
4 well11_4 11517.905660 1351.735849 15.113208 L1_HPFmo
Maintype_Symbol Subtype_Symbol
0 Vascular and leptomeningeal cells VLM_1
1 Vascular and leptomeningeal cells VLM_2
2 Telencephalon inhibitory interneurons TEINH_9
3 Vascular and leptomeningeal cells VLM_1
4 Telencephalon inhibitory interneurons TEINH_9
[7]:
# get cell centroids
xJ = np.array(df2['Y'])/5 # convert to similar scale
yJ = np.array(df2['X'])/5
# flip
yJ = yJ.max() - yJ
# plot
fig,ax = plt.subplots()
ax.scatter(xJ,yJ,s=1,alpha=0.2,c='#ff7f0e')
[7]:
<matplotlib.collections.PathCollection at 0x13fbb2960>
[8]:
# rasterize and plot
XJ,YJ,J,fig = STalign.rasterize(xJ,yJ)
ax = fig.axes[0]
ax.invert_yaxis()
Note that plotting the cell centroid positions from both datasets shows that non-linear local alignment is needed.
[9]:
# plot
fig,ax = plt.subplots()
ax.scatter(xI,yI,s=1,alpha=0.1)
ax.scatter(xJ,yJ,s=1,alpha=0.2)
[9]:
<matplotlib.collections.PathCollection at 0x13ffaf080>

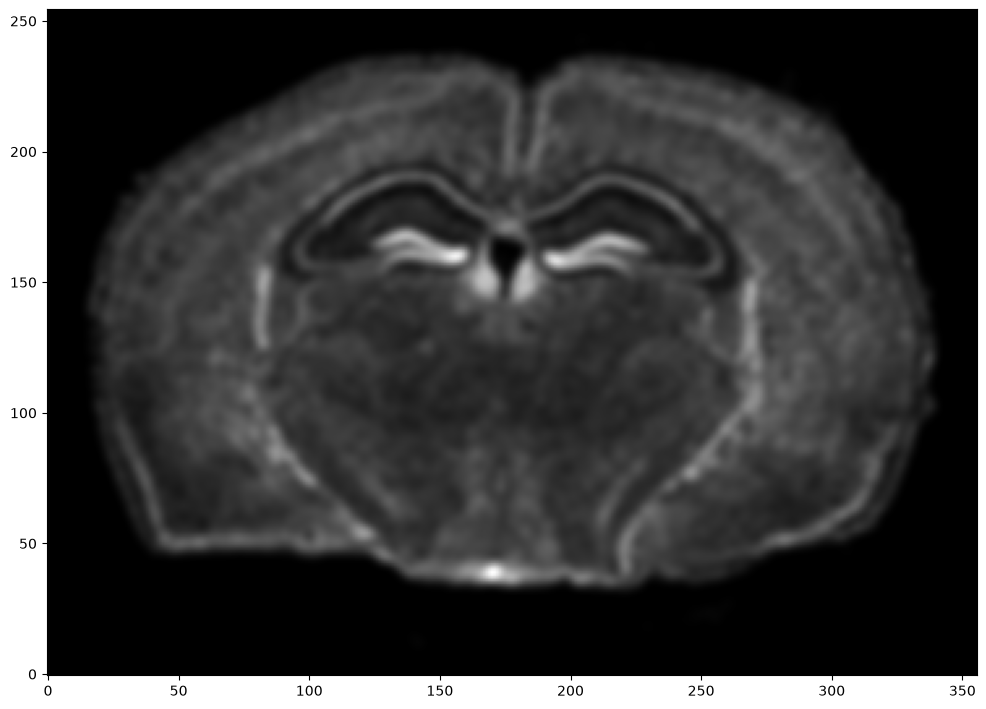

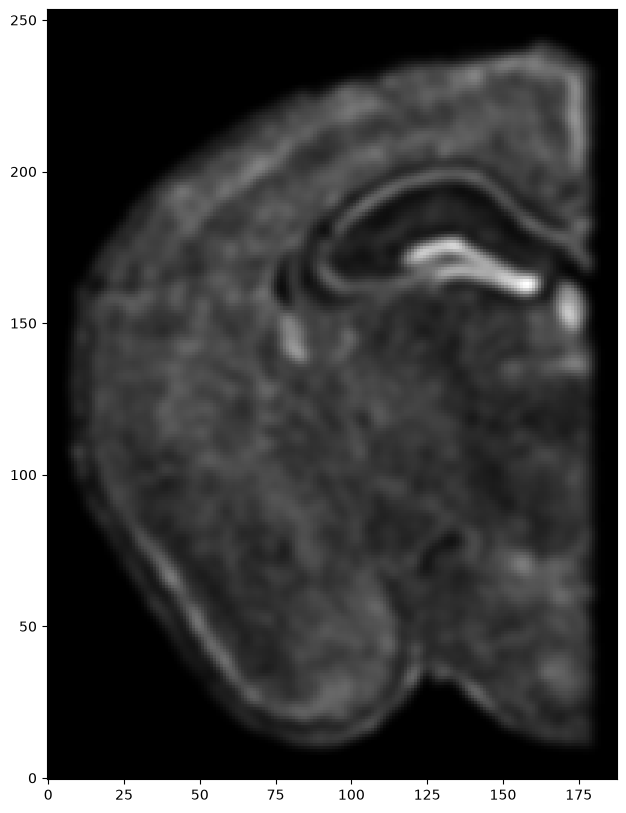

We can also plot the rasterized images next to each other.
[10]:
# get extent of images
extentI = STalign.extent_from_x((YI,XI))
extentJ = STalign.extent_from_x((YJ,XJ))
# plot rasterized images
fig,ax = plt.subplots(2,1)
ax[0].imshow((I.transpose(1,2,0).squeeze()), extent=extentI)
ax[1].imshow((J.transpose(1,2,0).squeeze()), extent=extentJ)
ax[0].invert_yaxis()
ax[1].invert_yaxis()
Now we will perform our alignment. There are many parameters that can be tuned for performing this alignment. If we don’t specify parameters, defaults will be used.
[11]:
# set device for building tensors
if torch.cuda.is_available():
torch.set_default_device('cuda:0')
else:
torch.set_default_device('cpu')
[12]:
%%time
# run LDDMM
# specify device (default device for STalign.LDDMM is cpu)
if torch.cuda.is_available():
device = 'cuda:0'
else:
device = 'cpu'
# keep all other parameters default
params = {
'niter': 4000,
'device':device,
'sigmaM':1.5,
'sigmaB':1.0,
'sigmaA':1.5,
'epV': 50,
'muB': torch.tensor([0,0,0]), # black is background in target
}
Ifoo = np.vstack((I, I, I)) # make RGB instead of greyscale
Jfoo = np.vstack((J, J, J)) # make RGB instead of greyscale
out = STalign.LDDMM([YI,XI],Ifoo,[YJ,XJ],Jfoo,**params)
CPU times: user 1min 8s, sys: 6.84 s, total: 1min 14s
Wall time: 21 s
[13]:
# get necessary output variables
A = out['A']
v = out['v']
xv = out['xv']

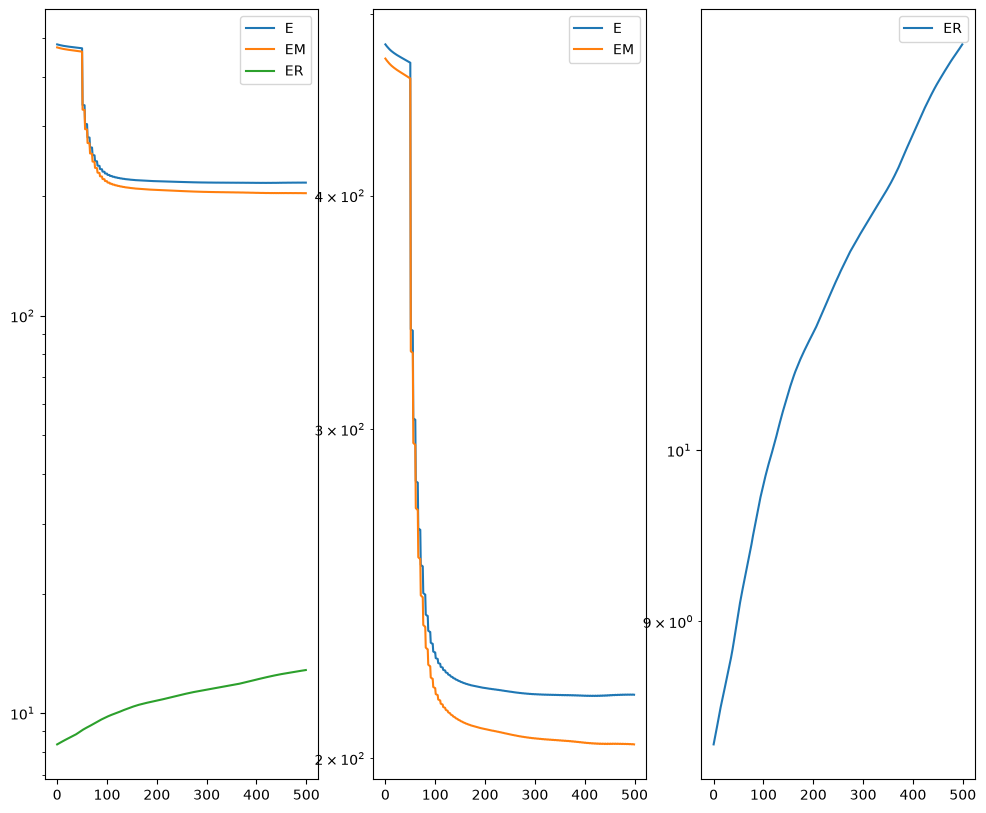

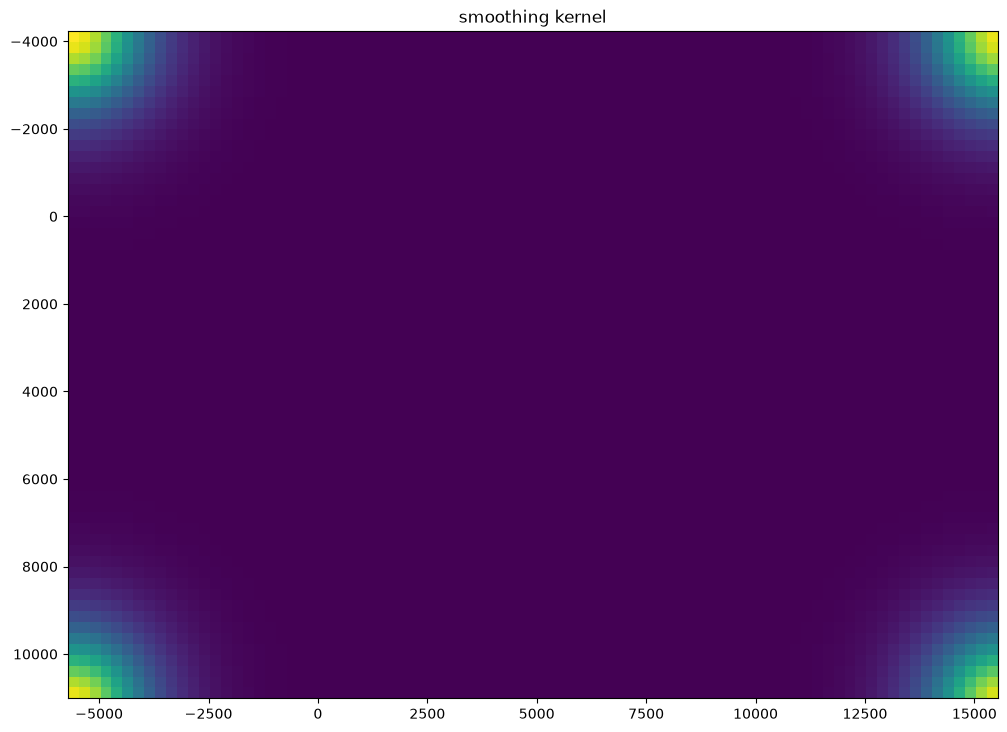

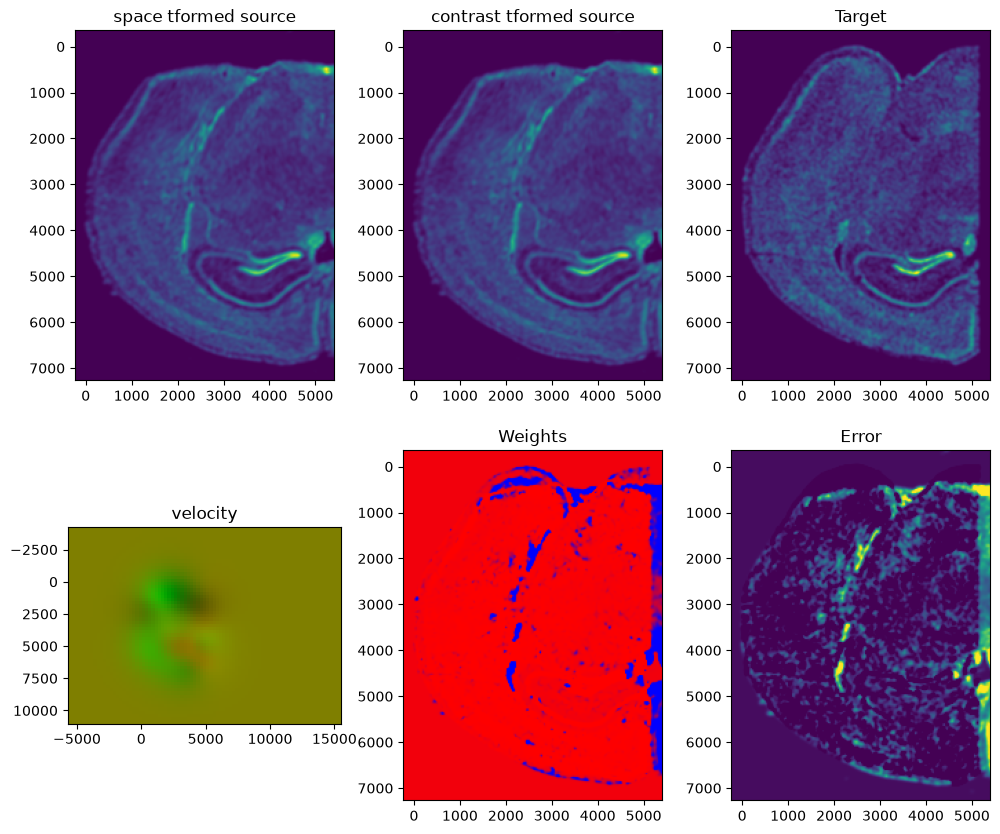

Plots generated throughout the alignment can be used to give you a sense of whether the parameter choices are appropriate and whether your alignment is converging on a solution.
We can also evaluate the resulting alignment by applying the transformation to visualize how our source and target images were deformed to achieve the alignment.
[14]:
# apply transform
phii = STalign.build_transform(xv,v,A,XJ=[YJ,XJ],direction='b')
phiI = STalign.transform_image_source_to_target(xv,v,A,[YI,XI],Ifoo,[YJ,XJ])
#switch tensor from cuda to cpu for plotting with numpy
if phii.is_cuda:
phii = phii.cpu()
if phiI.is_cuda:
phiI = phiI.cpu()
# plot with grids
fig,ax = plt.subplots()
levels = np.arange(-100000,100000,1000)
ax.contour(XJ,YJ,phii[...,0],colors='r',linestyles='-',levels=levels)
ax.contour(XJ,YJ,phii[...,1],colors='g',linestyles='-',levels=levels)
ax.set_aspect('equal')
ax.set_title('source to target')
ax.imshow(phiI.permute(1,2,0)/torch.max(phiI),extent=extentJ)
ax.invert_yaxis()
Note that because of our use of LDDMM, the resulting transformation is invertible.
[15]:
# transform is invertible
phi = STalign.build_transform(xv,v,A,XJ=[YI,XI],direction='f')
phiiJ = STalign.transform_image_target_to_source(xv,v,A,[YJ,XJ],Jfoo,[YI,XI])
#switch tensor from cuda to cpu for plotting with numpy
if phi.is_cuda:
phi = phi.cpu()
if phiiJ.is_cuda:
phiiJ = phiiJ.cpu()
# plot with grids
fig,ax = plt.subplots()
levels = np.arange(-100000,100000,1000)
ax.contour(XI,YI,phi[...,0],colors='r',linestyles='-',levels=levels)
ax.contour(XI,YI,phi[...,1],colors='g',linestyles='-',levels=levels)
ax.set_aspect('equal')
ax.set_title('target to source')
ax.imshow(phiiJ.permute(1,2,0)/torch.max(phiiJ),extent=extentI)
ax.invert_yaxis()
Finally, we can apply our transform to the original sets of single cell centroid positions to achieve their new aligned positions.
[16]:
# apply transform to original points
tpointsJ = STalign.transform_points_target_to_source(xv,v,A, np.stack([yJ, xJ], 1))
#switch tensor from cuda to cpu for plotting with numpy
if tpointsJ.is_cuda:
tpointsJ = tpointsJ.cpu()
# just original points for visualizing later
tpointsI = np.stack([xI, yI])
And we can visualize the results.
[17]:
# plot results
fig,ax = plt.subplots()
ax.scatter(tpointsI[0,:],tpointsI[1,:],s=1,alpha=0.1)
ax.scatter(tpointsJ[:,1],tpointsJ[:,0],s=1,alpha=0.2) # also needs to plot as y,x not x,y
[17]:
<matplotlib.collections.PathCollection at 0x307cf4890>
And save the new aligned positions by appending to our original data using numpy with np.hstack
[18]:
# save results: the STARmap cells (the target) with their positions in the coordinates of the Xenium section (the source)
# tpointsJ holds rows (y, x)
results = df2.copy()
results['aligned_x'] = tpointsJ[:, 1].numpy()
results['aligned_y'] = tpointsJ[:, 0].numpy()
results.head()
[18]:
| NAME | X | Y | Z | Tissue_Symbol | Maintype_Symbol | Subtype_Symbol | aligned_x | aligned_y | |
|---|---|---|---|---|---|---|---|---|---|
| 0 | well11_0 | 10834.272727 | 1488.454545 | 8.242424 | L1_HPFmo | Vascular and leptomeningeal cells | VLM_1 | 526.093313 | 4951.668515 |
| 1 | well11_1 | 12139.406780 | 864.788136 | 16.389831 | Meninges | Vascular and leptomeningeal cells | VLM_2 | 390.080169 | 4715.555274 |
| 2 | well11_2 | 11848.132075 | 1225.679245 | 21.528302 | Meninges | Telencephalon inhibitory interneurons | TEINH_9 | 461.312326 | 4766.209054 |
| 3 | well11_3 | 11090.980392 | 1342.539216 | 8.637255 | L1_HPFmo | Vascular and leptomeningeal cells | VLM_1 | 494.560416 | 4905.349324 |
| 4 | well11_4 | 11517.905660 | 1351.735849 | 15.113208 | L1_HPFmo | Telencephalon inhibitory interneurons | TEINH_9 | 489.724198 | 4826.166554 |
We will finally create a compressed .csv.gz file to create starmap_data/starmap_STalign_to_xenium.csv.gz
[19]:
results.to_csv('../starmap_data/starmap_STalign_to_xenium.csv.gz', index=False, compression='gzip')
Alternative: align_cells
STalign.align_cells runs the steps above in one call. It rasterizes both sets of cells at 15 µm with a Gaussian kernel of 30 µm standard deviation, and runs LDDMM coarse to fine (500 iterations on 60 µm pixels, then 500 on 30 µm), with the step sizes and the regularization chosen from the images. It chooses these settings for you: the walkthrough above shows what each of them does, and align_cells accepts them as arguments. In our tests on simulated deformations of real cell sets,
its error was less than half that of LDDMM on a single raster. It returns the same output as LDDMM, so the transform functions work on it as above.
By default, align_cells uses a mixture model (mixture='em') that gives a low weight to parts of the target that look like background where the source has tissue, which helps when the target section lacks tissue that the source has. The STARmap section lacks much of the tissue of the Xenium section, the case the mixture model is meant for. For complete sections, also try mixture=None, which turns it off: in our tests the mixture model made the alignment of some complete sections with
uneven cell density, and of some serial sections, worse.
[20]:
%%time
# align the cells
out_cells = STalign.align_cells(xI, yI, xJ, yJ, device=device)
CPU times: user 10.9 s, sys: 2.76 s, total: 13.7 s
Wall time: 4.25 s
[21]:
# apply transform to original points of target to source
tpointsJ_cells = STalign.transform_points_target_to_source(out_cells['xv'],out_cells['v'],out_cells['A'], np.stack([yJ, xJ], 1))
#switch tensor from cuda to cpu for plotting with numpy
if tpointsJ_cells.is_cuda:
tpointsJ_cells = tpointsJ_cells.cpu()

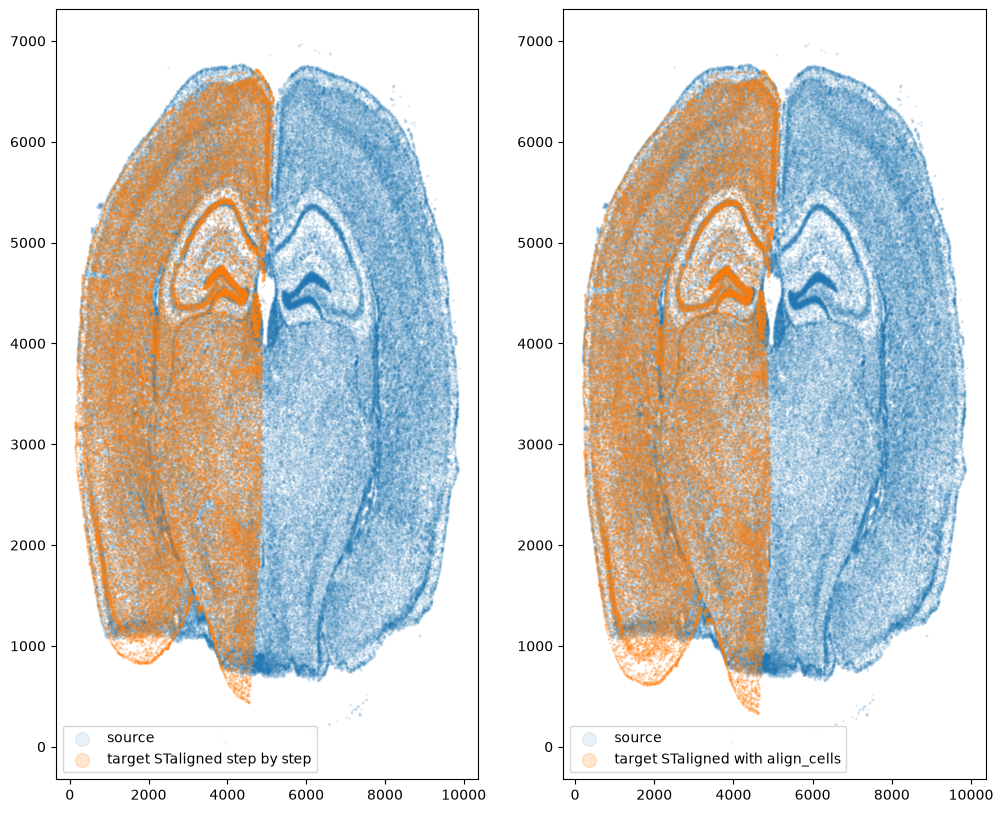

We can compare the result with that of the step by step alignment above.
[22]:
fig,ax = plt.subplots(1,2)
ax[0].scatter(tpointsI[0,:],tpointsI[1,:],s=1,alpha=0.1, label='source')
ax[0].scatter(tpointsJ[:,1],tpointsJ[:,0],s=1,alpha=0.2, label='target STaligned step by step')
ax[1].scatter(tpointsI[0,:],tpointsI[1,:],s=1,alpha=0.1, label='source')
ax[1].scatter(tpointsJ_cells[:,1],tpointsJ_cells[:,0],s=1,alpha=0.2, label='target STaligned with align_cells')
ax[0].legend(markerscale = 10, loc = 'lower left')
ax[1].legend(markerscale = 10, loc = 'lower left')
[22]:
<matplotlib.legend.Legend at 0x167552690>
[23]:
# distance between the two aligned positions of each cell
d = np.sqrt(np.sum((tpointsJ_cells.numpy() - tpointsJ.numpy())**2, axis=1))
print('distance between the two results: mean {:.1f}, median {:.1f}, 95th percentile {:.1f}'.format(
np.mean(d), np.median(d), np.percentile(d, 95)))
distance between the two results: mean 103.0, median 98.2, 95th percentile 209.2
The two alignments differ more here: half of the cells are placed about 100 µm apart or more, mostly in the lower and outer part of the hemisphere, where the STARmap section has tissue that the Xenium section lacks.
